High-Pressure Heavy Lifting Airbags

High-Pressure Heavy Lifting Airbags

  • High-Pressure Heavy Lifting Airbags
  • High-Pressure Heavy Lifting Airbags
  • High-Pressure Heavy Lifting Airbags
  • High-Pressure Heavy Lifting Airbags
High-Pressure Heavy Lifting Airbags
Λεπτομέρειες:
Τόπος καταγωγής: Qingdao, Κίνα
Μάρκα: Luhang
Πιστοποίηση: ISO14409
Αριθμό μοντέλου: Αεροσακούλες για βαριά ανύψωση
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1 PCS
Τιμή: Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες: Συσκευασία ταινιών στο palllet
Χρόνος παράδοσης: 10 εργάσιμες ημέρες ~ 15
Όροι πληρωμής: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Δυνατότητα προσφοράς: 100pcs/μήνας
Επικοινωνία
Λεπτομερής Περιγραφή Προϊόντος
Όνομα προϊόντος: Υψηλής πίεσης βαρέων αερόσακων ανύψωσης Υλικό: Μικτή καουτσούκ με φυσικό καουτσούκ και άνθρακα
Χρώμα: Μαύρος Μέγεθος: Ruquirement του πελάτη
Χρήση: Εκτόξευση πλοίων, πλοία καουτσούκ θαλάσσια σάκους διάσωσης σάκων Συσκευασία: ΑΧΥΡΟΣΤΡΩΜΑ
Πιστοποίηση: CCS,ABS,BV,LR Πίεση εργασίας: 0.05MPA-0.25MPA

Heavy Lifting Marine Rubber Airbags

Heavy Lifting Marine Rubber Airbags are essential equipment for marine operations, mainly used in ship launching/landing, heavy cargo lifting and moving, as well as salvage and buoyancy assistance. Composed of outer rubber layer, inner rubber layer and synthetic tire cord layer, they boast high load-bearing capacity, enabling them to handle ships up to 10,000 tons and hundreds of tons of heavy goods. With excellent aging resistance and wear resistance, these airbags are flexible and reliable—they require no large machinery, are less restricted by sites, and can be reused, effectively shortening project cycles and reducing costs, thus widely recognized in the global shipbuilding and port construction industries.

High-Pressure Heavy Lifting Airbags 0


Solution Advantages

Saving

Moving caisson with airbags can cut off 70% budget comparing with trolley method.



Safe

Airbags have big contact area with transported object, the low reaction force is good for structure safety.



Convenient

Air bags can move structure strightly in line or steer structure to anywhere.



Specification and Model



You can choose the required diameter and effective length to meet your projects. The below specification only is our standard specification arrange. Other specifications high-pressure heavy lifting airbags also can be supplied upon clients' request.



Air Bag Parameter High-pressure Heavy Lifting Airbags Size
Product Name ship launching marine rubber airbags
Airbags Diameter (m) 0.8 ~ 2.5m, or customized diameter
Effective Length (EL) 6 ~ 25m, or customized length
Total Length (TL) 7 ~ 27m, or customized length
Loading Capacity 10 ~ 40 ton/m, or customized capacity
Model of Airbags QP-ordinary, QG-high-bearing, QS-superhigh bearing

Heavy lifting airbags are categorized by the following three types according to the bearing capacity, per meter in length. We define the number of layers, which means the number of Synthetic-tyre-cord layers, in order to confirm the Safety Working Pressure. Another type is available upon clients' request.

01


QP

Ordinary airbag - with 3, 4 or 5 layers of cord fabric.


02


QG

High-bearing capacity airbag - with 6, 7, or 8 layers of cord fabric.


03

QS

Superhigh-bearing capacity airbag - with 9, 10, or more layers of cord fabrics as a custom request.



Products details

High-Pressure Heavy Lifting Airbags 1

High-Pressure Heavy Lifting Airbags 2High-Pressure Heavy Lifting Airbags 3High-Pressure Heavy Lifting Airbags 4High-Pressure Heavy Lifting Airbags 5

            Cord Fabric                           Air Inlet End                        Air Inlet End                 Air Tightness Swivel End

airbag Application



High-Pressure Heavy Lifting Airbags 6High-Pressure Heavy Lifting Airbags 7High-Pressure Heavy Lifting Airbags 8

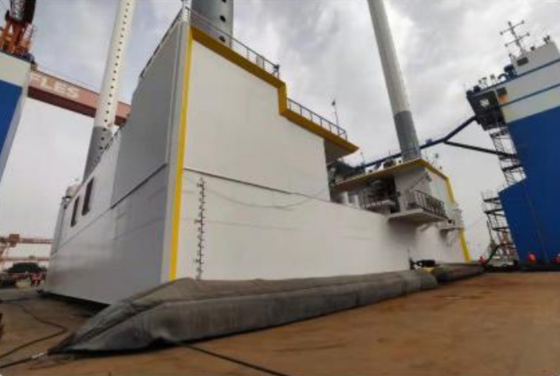

                 Ship Launching                                           Ship Lifting                                                 Buoyancy Support



High-Pressure Heavy Lifting Airbags 9High-Pressure Heavy Lifting Airbags 10High-Pressure Heavy Lifting Airbags 11

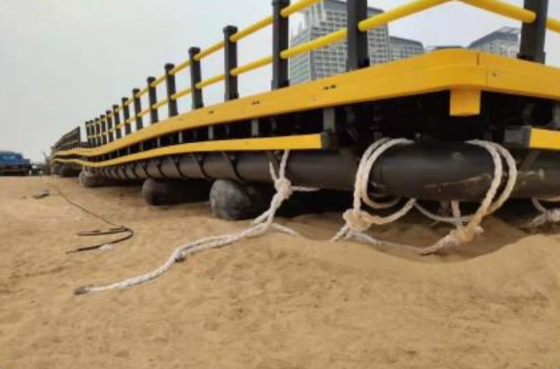

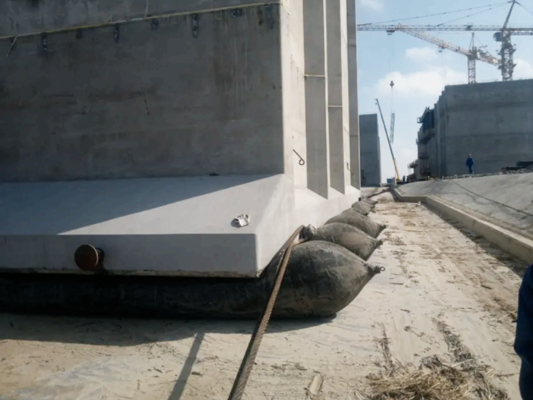

                     Heavy Lifting                                        Pipeline Buoyancy Airbag                                Marine Salvage



Airbag production process
