D-type polyurethane fender

D-type polyurethane fender

  • D-type polyurethane fender
  • D-type polyurethane fender
D-type polyurethane fender
Λεπτομέρειες:
Τόπος καταγωγής: Qingdao, Κίνα
Μάρκα: Luhang
Πιστοποίηση: ISO14409
Αριθμό μοντέλου: LHA2
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1 τεμ
Τιμή: Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες: Συσκευασία ταινιών στο palllet
Χρόνος παράδοσης: 10 εργάσιμες ημέρες ~ 15
Όροι πληρωμής: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Δυνατότητα προσφοράς: 100pcs/μήνας
Επικοινωνία
Λεπτομερής Περιγραφή Προϊόντος

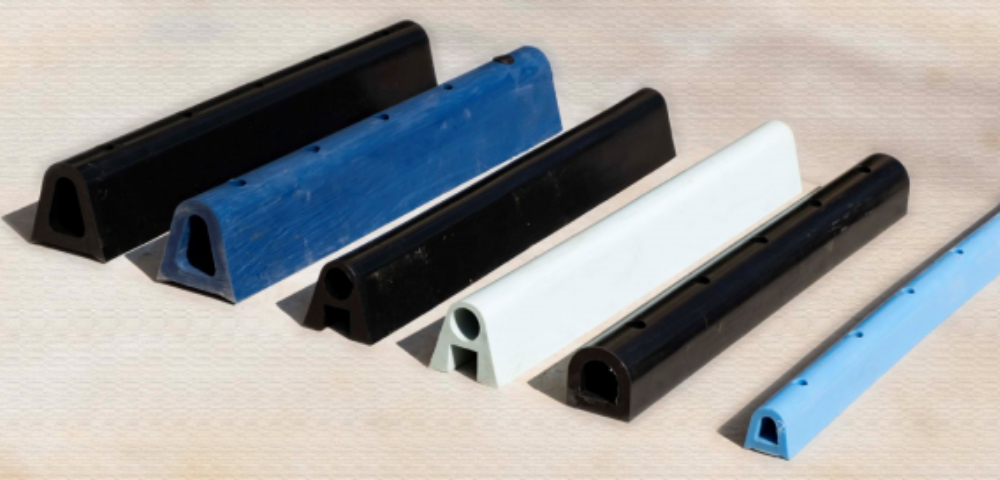

D-type polyurethane fender



1. The cross-section of the D-type fender is semi-circular and it is hollow throughout.
2. It has a large energy absorption capacity, low reaction force and light weight.
3. It is easy to install and maintain, and is suitable for smaller public vessels and yachts. Our company has currently developed six types of D-type polyurethane fenders for selection: D-200/200, D-150/150, D-100/100, D-100/80, D-80/60, D-70/70 and D-60/50.

D-type polyurethane fender 0

D-type polyurethane fender 1D-type polyurethane fender 2

Products Specification







Serial Number Model Specification (Width × Height × Length) MM Weight (KG)
1 Type D 200×200×1000 16
2 Type D 150×150×1000 10.6
3 Type D 100×100×1000 6.2
4 Type D 100×80×1000 6
5 Type D 80×60×1000 3.4
6 Type D 70×70×1200 3.3
7 Type D 60×50×1000 1.6



Installation method

D-type polyurethane fender 3D-type polyurethane fender 4

Installation Instructions:

1. Weld the fixing bolts at the corresponding positions on the hull according to the installation diagram.

2. Install the fender on the hull as shown in the figure and fasten it with bolts.
